#plottertwitter, #generative

Elm

SVG

Javascript

Pen Plotter

demystify creative coding for functional programmers

I. Random grid

II. Shepherding random numbers

III. L-Systems

How to draw a grid of lines, with random rotations

Please 🐻 with me. This will be code heavy.

Full code example is link in the slide at the end.

Making a grid


import List.Extra exposing (initialize, andThen)

makeGrid : Int -> Int -> List ( Float, Float )
makeGrid m n =
    initialize m toFloat
        |> andThen (\x -> initialize n toFloat
        |> andThen (\y -> [ ( x, y ) ]))


Recipe taken from Elm-Packages : List.Extra


> initialize 2 toFloat
[0,1] : List Float

> makeGrid 2 2
[(0,0),(0,1),(1,0),(1,1)] : List ( Float, Float )


Drawing a line


import Svg exposing (Svg)
import Svg.Attributes as Attributes

line : Float -> Float -> Float -> Float -> Svg msg
line x1 y1 x2 y2 =
    Svg.line
        [ Attributes.x1 <| toString x1
        , Attributes.y1 <| toString y1
        , Attributes.x2 <| toString x2
        , Attributes.y2 <| toString y2
        ]
        []


Generating random rotations

Generating random rotations

The program structure we are about to plumb


type Model
    = Setup ...
    | Model ... (...)

type Msg
    = Generate
    | Draw (...)

init = update Generate (Setup ...)

update msg model =
  case ( msg, model ) of
    ( Generate, Setup ... ) ->
      -- | Tell Elm to populate random numbers into Draw

    ( Draw, Setup ... ) ->
      -- | Create our Model for rendering

view (Model ...) =
  List.mapN drawFunction initialShape randomValues


1. Define our own generator & model


type Model
    = Setup Int Int               -- | Grid (m x n) in size
    | Model Int Int (List Float)  -- | Mix in random values

type Msg
    = Generate
    | Draw (List Float)


init : ( Model, Cmd Msg )
init =
    update Generate (Setup 16 16)


2. Random generation


import Random exposing (Generator)

random : Generator Float
random =
    Random.float -0.5 0.5         -- | Generate a value between -0.5 and 0.5

randomList : Int -> Generator (List Float)
randomList n =
    Random.list n random


update : Msg -> Model -> ( Model, Cmd Msg ) -- | Calls `view` each time
update msg model =
    case ( msg, model ) of
        ( Generate, Setup m n ) ) ->
            ( model, Random.generate Draw <| randomList (m * n) )

        ( Draw rs, Setup m n ) ->
            ( Model m n rs, Cmd.none )

        _ ->
            ( model, Cmd.none )


3. Drawing our grid of lines, with random rotations

View online | Source


import Svg.Attributes exposing (transform)

view : Model -> Svg Msg
view (Model m n rs) =
    let
        flip r = if r > 0 then 0 else 90
    in
    List.map3
        (\( dx, dy ) (( x1, y1 ), ( x2, y2 )) r ->
            Svg.g
                [ transform <|
                      (" translate(" ++ toString dx ++ "," ++ toString dy ++ ") ")
                      ++ " rotate(" ++ toString (flip r) ++ ") "
                ]
                [ line x1 y1 x2 y2 ]
        )
        (makeGrid m n)
        (List.repeat (m * n) ( ( -0.5, -0.5 ), ( 0.5, 0.5 ) ))
        rs


I. Random grid

II. Shepherding random numbers

III. L-Systems

Shepherding random numbers

Creating the illusion of order out of pure randomness.

  1. Generate a list of random values between -0.5 and 0.5.
    e.g. A = [ 0.3, 0.5, -0.4, -0.2, 0.7 ]
  2. Accumulate each random value into a new list.
    e.g. B = [ 0.3, 0.8, 0.4, 0.2, 0.9 ]
  3. Add both lists to some starting values.
    e.g. C = [ 0, 1, 2, 3, 4 ] + A + B = [ 0.6, 2.3, 2.0, 3.0, 5.6 ]

Shepherding values in practice

View online | Source


type Model =
    Setup Int | Model Int Curtain

type Curtain =
    Curtain (List (List Float)) (List (List Float))

view : Model -> Svg Msg
view (Model n (Curtain a b)) =
    Svg.g
        []
        -- | creates `List (List (Float, Float))` with 100 segments each.
        (initialiseLines 100
            -- | Add random and shepherded random values to each list of points
            |> List.map2 (map2First (+)) a
            |> List.map2 (map2First (+)) (accumulateList a)
            |> List.map2 (map2First (+)) b
            |> List.map2 (map2Second (+)) (accumulateList b)
            -- | Draw each line
            |> List.map lines
        )


I. Random grid

II. Shepherding random numbers

III. L-Systems

L-System is a rewriting ruleset

Trivia: it was originally created to simulate plants in nature.

🐢 The Turtle Graphics L-System 🐢

  • D: Draw forward 1 step
  • S: Skip forward 1 step without drawing
  • L: Turn left
  • R: Turn right

Exmaple taken from The Algorithm Beauty of Plants

🐢 Example: Rectangles

Starting point: (0, 0), angle: 0° (->)

Starting state: DRDRDRD

Apply this ruleset

Starting state: DRDRDRD

Rule: D -> DDRDLDRDRDD

We get

DDRDLDRDRDDRDDRDLDRDRDDRDDRDLDRDRDDRDDRDLDRDRDD

Implementing a simple L-System


type alias Rule a =
    a -> List a

apply : Rule a -> List a -> List a
apply rule states =
    List.concatMap (\s -> rule s) states


type State
    = D
    | S
    | L
    | R

turtle : List State -> ( Float, Float ) -> Float -> List Segment
turtle states point angle =
    let
        move ( x, y ) a =
            ( x + cos (degrees a), y + sin (degrees a) )

        next ( p, a ) state =
            case state of
                D -> ( ( move p a, a ), [ PathD.L (move p a) ] )

                S -> ( ( move p a, a ), [ PathD.M (move p a) ] )

                L -> ( ( p, a - 90 ), [] )

                R -> ( ( p, a + 90 ), [] )
    in
        List.concat (Tuple.second <| mapAccuml next ( point, angle ) states)

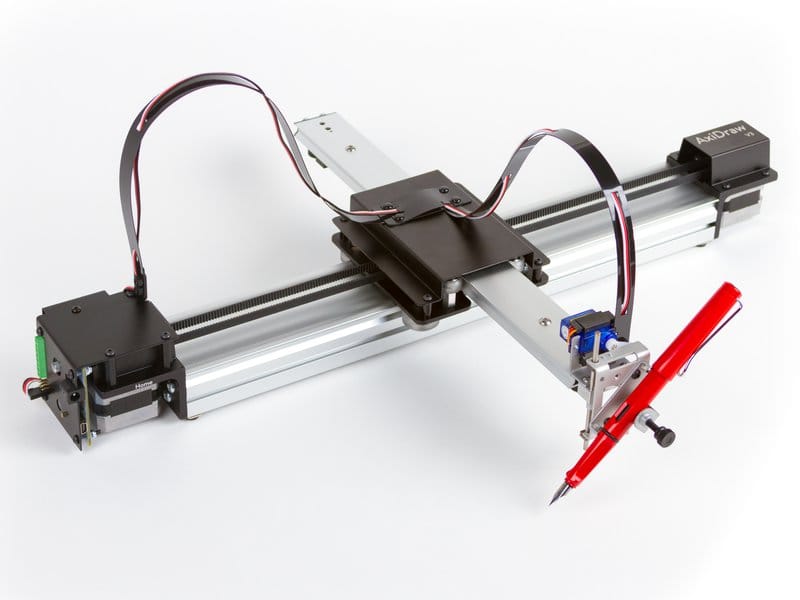

Interfacing with a pen plotter

Because Elm doesn't (yet) have:

  1. Conversion to HTML raw string
  2. Access to DOM.innerHTML()

We use port — Elm's foreign function interface to Javascript.

1. Specify Elm port function name


  port print : String -> Cmd msg


2. Connect Javascript function to port


  app.ports.print.subscribe( () => {
      const node = document.getElementById('frame');
      const payload = { svg: node.outerHTML };
      http('POST', api(port, '/print'), payload)
        .then(console.log)
        .catch(console.error);
  });
